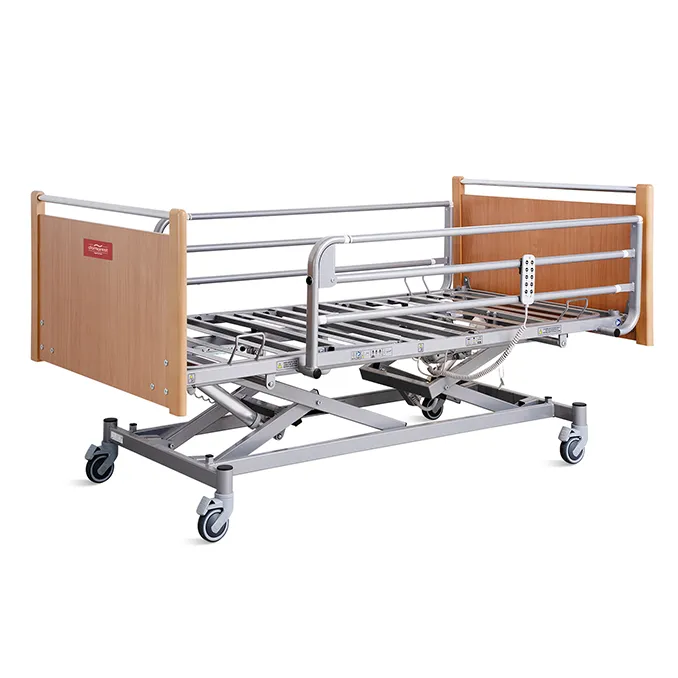

SK-HD04 5-function Electric Nursing Bed

This bed is specially made for home care and long term care environments and offers superior comfort and usability features for its users.

Domoresty-Your Trusted Home Care Partner

Domoresty is a specialized brand dedicated to enhancing the quality of home care. We provide professional home care beds and products that prioritize safety, comfort and independence. Our goal is to make home care more comfortable, providing innovative and practical solutions that improve the quality of life. At Domoresty, we are committed to making convenient and reliable home care accessible and reliable to families around the world.

Inquire Now Next Product Catalogue

HIGHLIGHTS

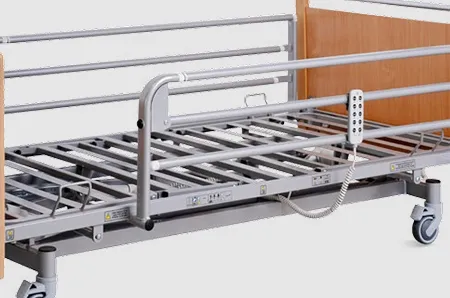

Mattress Platform

The bed board is divided into 4 parts, the back and legs can be folded up separately, and the size division is ergonomic.

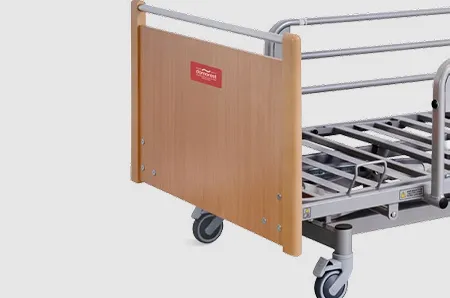

Head & Foot Board

The head and foot boards are made of laminate and solid beech wood, providing strong stability while being lightweight. There are 6 standard colors to choose from.

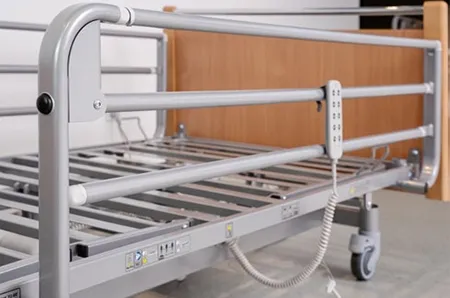

Siderail

folding by one button，Three profles construction, folding by using one button in the upper part, curved shape and cover joints are used to increase safety and comfort for users.

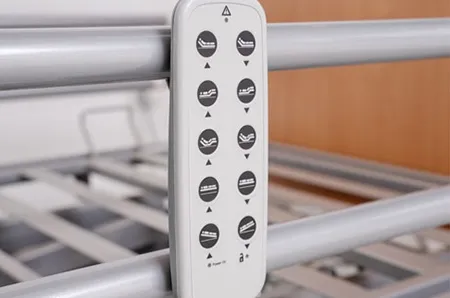

Remote Controller

The 10-button remote controller has a lock function to prevent accidental touches.

Features

This bed is specially made for home care and long term care environments and offers superior comfort and usability features for its users.

Bed Construction +-

Design	Modern pantograph structure, solid and practical, the structure of the bed is independent of the wooden frame, and the bed can be replaced with a new one without affecting the functionality of the bed.
Mattress platform	1. The bed board is divided into 4 parts, the back and legs can be folded up separately, and the size division is ergonomic. 2. To ensure the safety and comfort of patients, an extremely low mattress platform position is provided with the lowest reach 19cm
Head & Foot Board	The head and foot boards are made of laminate and solid beech wood, providing strong stability while being lightweight. There are 6 standard colors to choose from, with a simple and elegant appearance and rounded edges.
Steels	The whole bed is made of high-quality steel and welded by robots. The welding is beautiful and neat with high strength.

Safty First +-

Safty standard	Passed the safety test IEC60601, and conducted 3200 cycles test with the maximum safety load of 215kg
Trusted electric system	MCL II motor, safety guaranteed. Motor noise under 67dB, 5 years of service life , waterproof grade IPX4
Safty labels	multiple warning labels on the bed body to prevent pinching and potential risks and injuries.
Super low position	Lowest height 260mm from the ground, to prevent accidental falls from the bed
Quality assurance:	Quality assurance, two-year warranty

Great Multi-Care +-

Basic Positioning and Adjustments	Each part of the bed board can move independently to form different positions, which is convenient for nursing Back rest : 0-68° Thigh rest: 0-28° Calf rest:0-21° Trendelenburg: 0-15° Reverse trendelenburg:0-18° Height adjustment: 26-76cm The design of this bed series takes safety requirements into full consideration, providing higher safety and convenience from a structural perspective.
Auto Contour function	Back-knee linkage When lifting your back, you will slide downward. This bed has the back-knee linkage function. The leg board moves before the back board, you can support your body and prevent it from sliding downward when lifting your back.
Adjustable Leg Plate	The adjustable leg board design can flexibly adjust the height or angle of the leg part according to the patient's needs, providing better support and comfort for the user.
one-button function	The specific one-button function makes the bed more convenient to operate.
The remote controller	The 10-button remote controller has a lock function to prevent accidental touches.
Siderail	Easy and comfortable side rails folding by one button，Three profles construction, folding by using one button in the upper part, curved shape and cover joints are used to increase safety and comfort for users.

Options +-

Emergency power system	The Emergency powerSystem is an additional power source (two replaceable 9V batteries) located in the ECS control box that allows the backrest and leg section to be lowered in the event of a power outage.
Trapeze Pole	The bed can be optionally equipped with a lifting pole with a triangular handle, and the length of the belt on the lifting rod is adjustable. The safe working load is 80kg
central brake system	Central brake system locks all 4 wheels simultaneously, easy to operate, simple and efficient

Technical Parameters +-

Bed dimentions	L2060*W1050
back rest	0-68°
leg rest	0-28°
Tredelenburg	0-15°
Reverse Trendelenburg	0-18°
Safe working load	215kg
mattress size	L2000*900mm/800mm
Height adjustment	260-760mm
